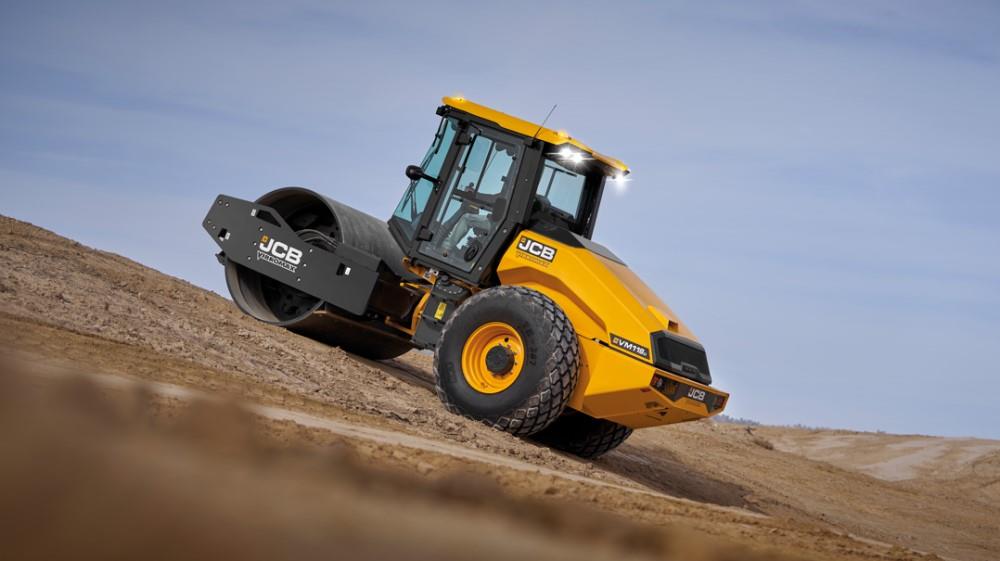

In a not so little something for hirers specialising in larger costruction machinery, JCB is launching the VM118D single drum soil compactor. A claimed world-first, no less...
The new machine is powered by JCB's Stage V 55kW 430 diesel engine, with other key features including: up to 256kN centrifugal force delivering superior compaction, 28mm plus10mm drum shell thickness for more vibrating mass and durability, 4-traction modes and balanced hydraulic system for up to 55% gradeability and an air-conditioned ROPS/FOPS cabin package.
The VM118D weighs in at 12-tonnes and borrows elements from JCB's 116D and VM117 models. The front section, including the complete vibratory drum is taken from the 116D, while the rear section is based on the India Domestic VM117 Stage V compactor.
The high-torque engine drives through a 4-mode traction system, offering work, travel, gradient and PD shell settings. This delivers up to a 55% gradient climbing capability. The vibratory drum boasts 32Hz and 36Hz frequencies and a choice of two amplitudes - 1.8mm and 0.8mm. There are also two centrifugal force settings, of 256kN and 147kN.
The soil compactor comes with the option of JCB’s INTELLICOMPACTION system and has Connected Compaction through the JCB LiveLink telematics system. A LiveLink subscription is included with the machine for the first five years of ownership.
The VM118D benefits from a new ROPS/FOPS cab. Flat glass all around reduces cost in the event of damage. A JCB UX 7” touchscreen used on the latest X-Series excavators displays all machine functions and in combination with a rotary control, provides easy access to all menus. The cab also includes LED front and rear working lights, four amber beacons integrated into the roof, flat glazing for easy replacement and an air conditioning and heating unit integrated into the cab roof. An optional safety pack incorporates a road lighting kit, white noise reversing alarm and an immobiliser.
