Doosan has launched a new range of small portable compressors, offering four new models with free air deliveries from 2.5 to 5.0 m³/min (90-180 cfm) and powered by Stage V engines.

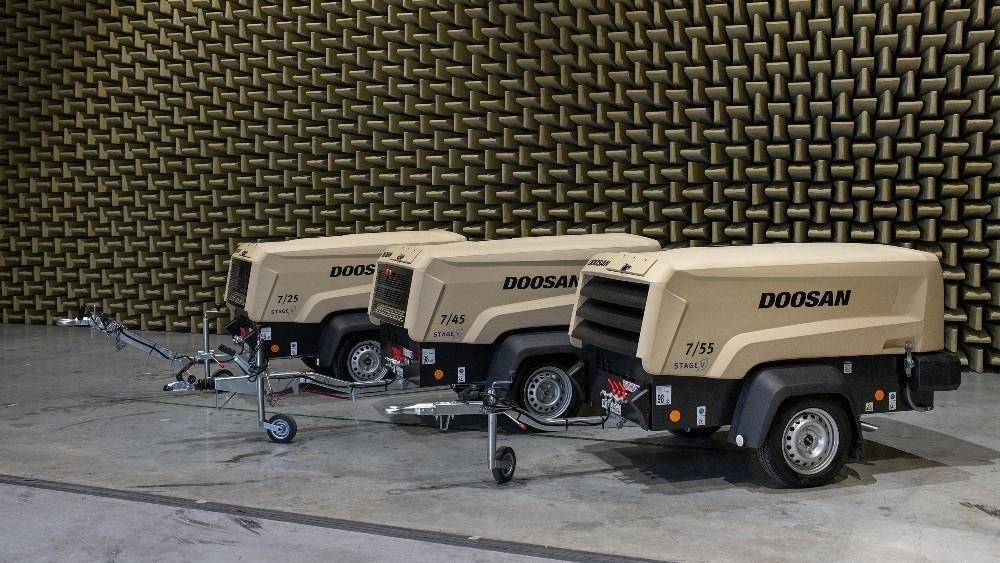

In terms of specifying one of the new Doosan machines, the first number in the model name indicates the pressure in bar, the second represents nominal air flow in cubic metres per minute, while the number 5 at the end indicates a Stage V compliant engine. There are three models operating at 7 bar nominal pressure - the Stage V Yanmar-powered 7/25, 7/45 and 7/55 with outputs of 2.5, 4.0 and 5.0 m³/min (90, 140 and 180 cfm), respectively. The small compressor range is completed by the new 14/35 higher pressure model providing 3.0 m³/min (105 cfm) of compressed air at 13.8 bar.
Key features include an easy-to-open canopy, newly designed polymer mudguards and bumpers, integrated LED lights and an updated control panel protected by a lockable cover. All the new machines are equipped with unbraked or fully-braked running gear, both available in fixed and variable height configurations. They have been designed to guarantee a weight below 750 kg, even with additional options, such as an aftercooler or lubricator. This means that anyone with a standard Category B driver's license can tow the units behind their vehicle.
Lastly, the long-standing metal canopy versions will still be available to customers as an option. See the new machines in action below.
